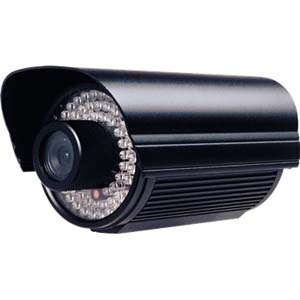

NET-Q75series
1.With high-speed programmable media processor, single chip SOC, built-in ARM9+DSP and high speed video coprocessor.
2.With optimized MPEG4 compression algorithm suit for video transmission in narrowband and mobile.
3.Real time D1 resolution coding.
4.Support WIFI/802.11b/g wireless network,CDMA1X and GPRS and mobile.
5.Support remote system upgrade function.
6.Support dynamic domain analysis,LAN and internet.
7.Support kinds of network protocol.
Other model and chip specifications:
Model: NET-Q76 (1/4" Sony CCD)
Model: NET-Q78 (1/3" Sony HAD CCD)
Model: NET-Q79 (1/4" Sharp CCD)
Features Parameters
SensorĄG 1/3" SONY HAD CCD
Horizontal resolutionĄG Day: 540TVL Night:B/W 600TVL
PixelsĄG PAL:704(H)*576(V)/NTSC:720(H)*480(V)
PowerĄG DC/AC 12-24V
System ĄG PAL/NTSC
IR LEDĄG 70 Ultra-High-power 5mm IR LEDs
Min.illumination ĄG IR LEDs start 0 lux/Video color changes to Black and White
S/N ratioĄG more than 48db
White BalanceĄG Auto/Manual
Automatic gain control ĄG Auto
Size/WeightĄG Łp70mm*135(length)mm/0.8kg
Electronic shutterĄG 1/50(1/60)ĄX1/100,000(s)
LensĄG Standard configuration:12mm;Optional: 6mm/8mm/16mm/25mm/35mm
OutputĄG BNC, 1.0Vp-p 75Ł[
Material/ColoĄG Aluminum/Silver/Black/White
CertificatesĄG CE/FCC/MA/Patent |
|
|
| |
