| Sell SV-130 MPEG-2 Decoder (4:2:2) |
| |
 |
Content: |
|
|

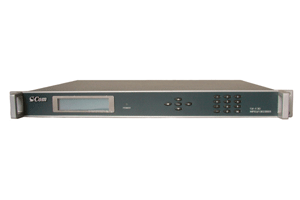

SV-130 is SCom innovated professional grade MPEG-2 digital video decoder. Offering alterable interfaces, SV-130 series are able to receive MPEG2 TS streaming from DVB ASI/SPI interface, IP network and output decoded signals via analog video/audio ports, digital ASI, SDI/AES ports, with local and network operation modes.
Main Features
Audio/Video Decoding
* Support a variety of interfaces
* Support ISO13818-1 TS demultiplexing (up to 32PID)
* Support ISO13818-2 (Main Profile @ Main Level and 422 Profile @ Main Level) video decoding
* Support ISO11172-3 and ISO13818-3 audio decoding, provide simultaneous 2 pairs of stereo (4 channels) decoding
* Support graphic display up to 16 bits/pel (OSD)
* LCD/OSD real time display of measured MPEG2 streaming information
* Test result and the device status can be displayed through SNMP MIB
* Support the visit to SV-130 to get the test information from personal PC via web browser
* English/Chinese Menu display
* Execute control by panel keys and network interfaces
* Configure and check working status over the network
* Configure and control the decoder by the network interfaces
* Communication protocol and remote control software package for third-party networking and application development
* Upgrade software version via serial port/network
|
|
|
| |
